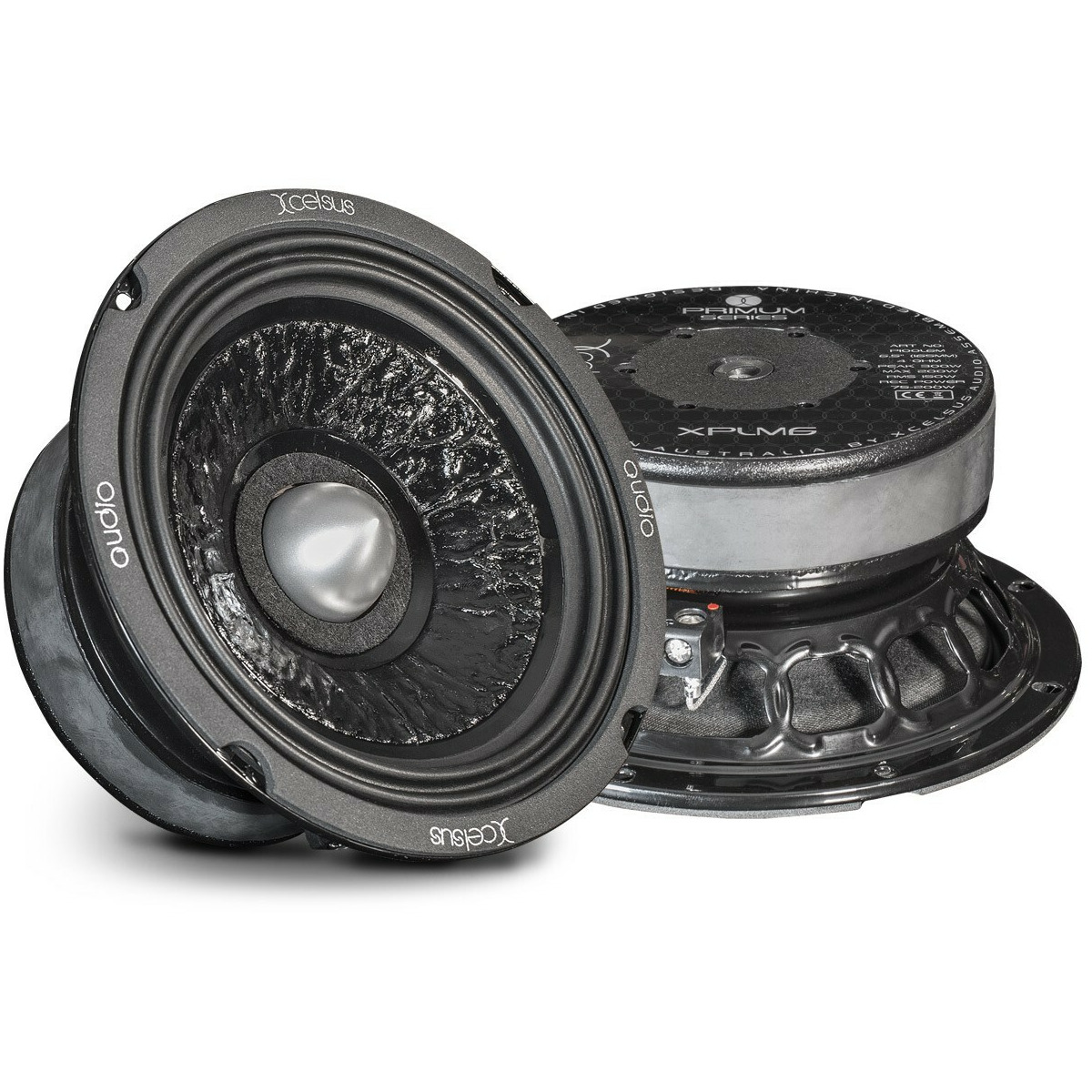

Xcelsus 6.5inch SQL Midbass Drivers - Designed & Engineered in Sweden
Overview
Premium series XPLM6 – is a new 16.5 cm / mid-range component speaker that is our entry into the SQL class with its exceptional sonic characteristics & ability to play clean & loud.
Features
- Specifically designed for loud music with good sound and good control
- Oversized magnet system for optimum dynamics
- 38mm voice coil with integrated cooling system for heat dissipation
- Grills included
The 6.5” driver was designed around a lightweight, high-quality, non-pressed paper cone that is coupled to a 38mm high-temperature air-cooled voice coil.
Featured is a bullet-contoured phase plug that is attached to an oversize magnetic motor system with a copper shorting cap.
When paired with our matching XPLT28W waive guide allowing this driver to affordably deliver a HiFi quality sound experience at extreme volume levels.
Specifications
- Grills included: Yes
- Installation depth: 71 mm
- Mounting hole: 144 mm
- Magnet size: 130 mm
- Resistance: 4 ohms
- Sensitivity: 94 dB / 1W
- Operating frequency range: 80-7000 Hz
- Maximum power: 300 watts
- Power Rating (RMS): 125 watts
- Outside Diameter Midbass: 6.5″ (200 mm)
