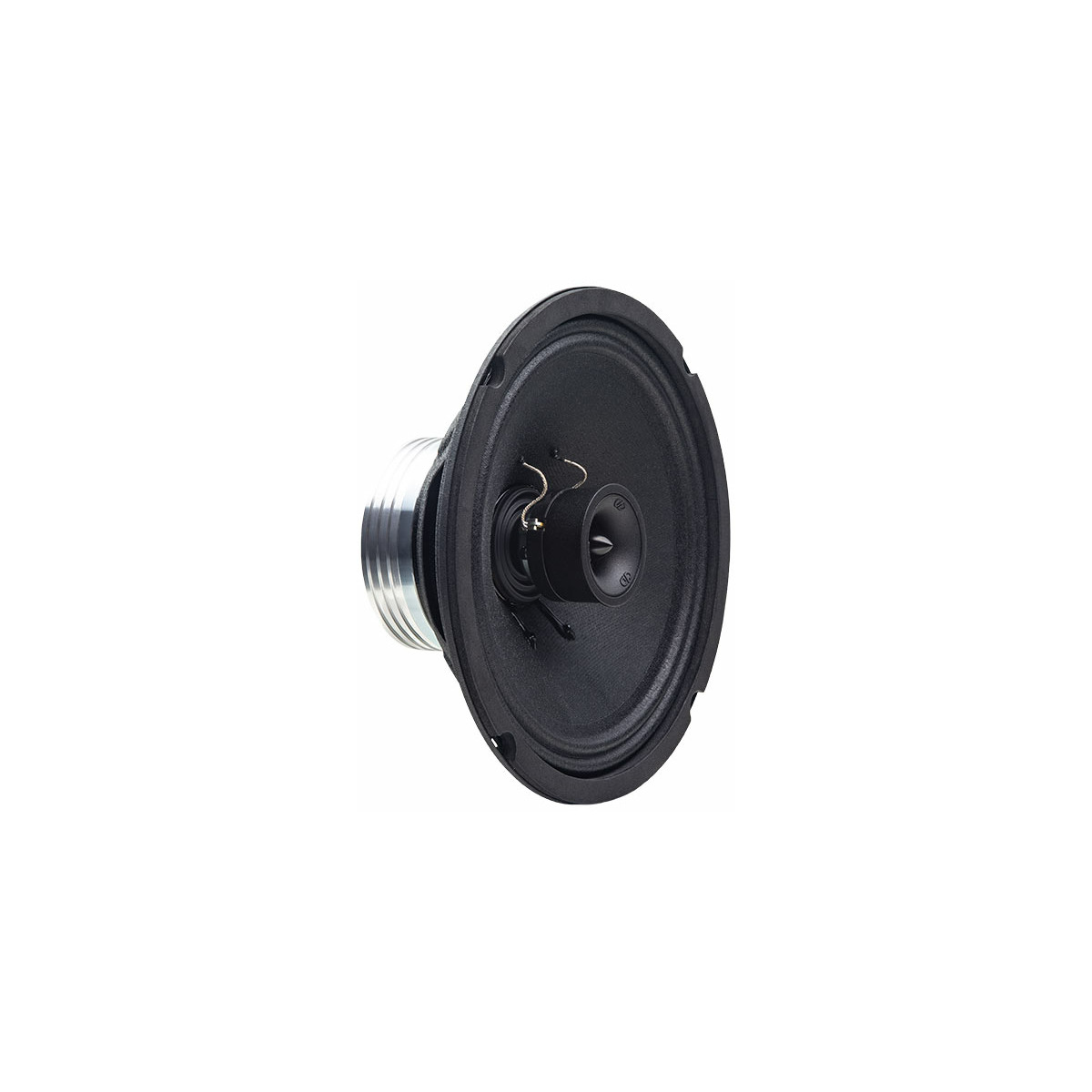

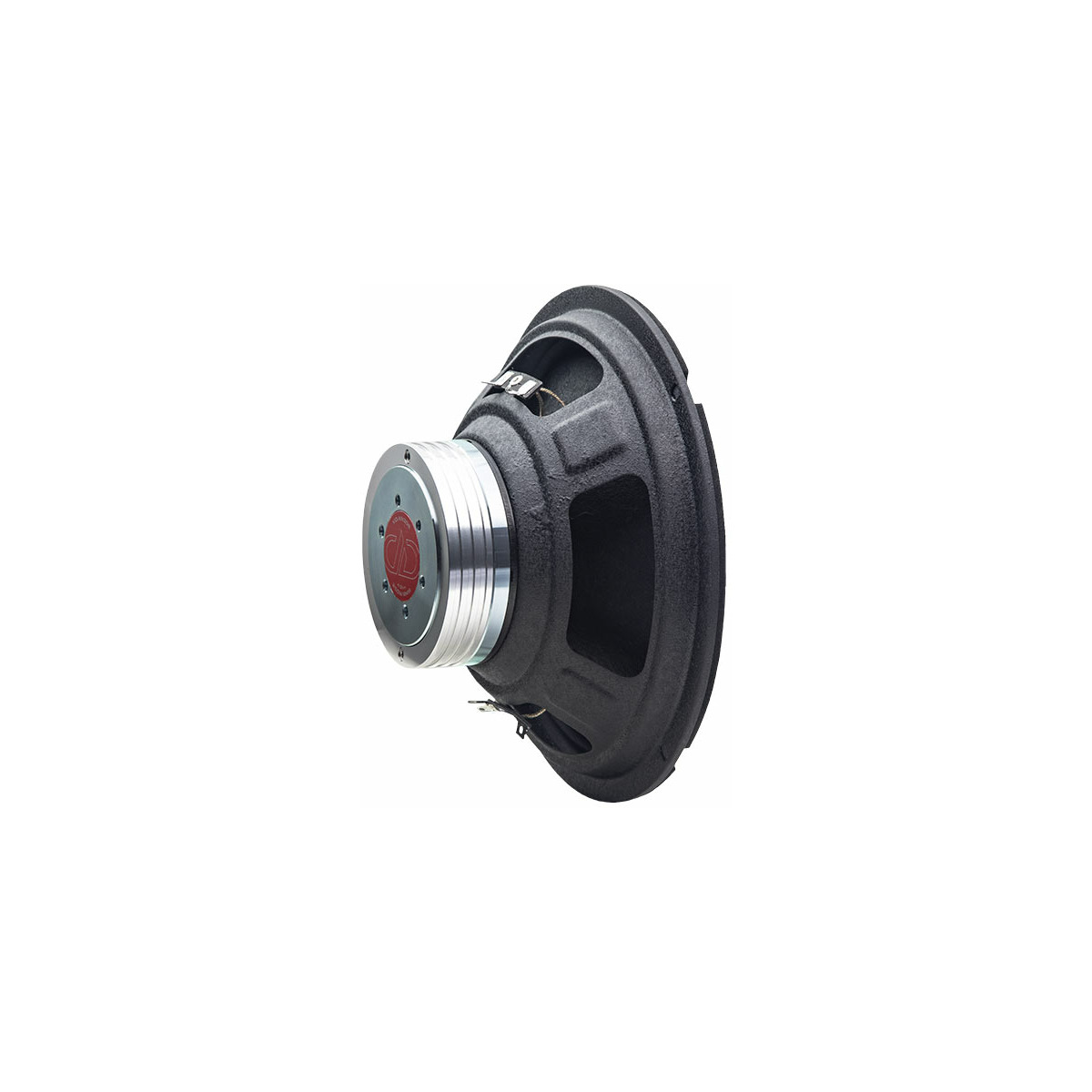

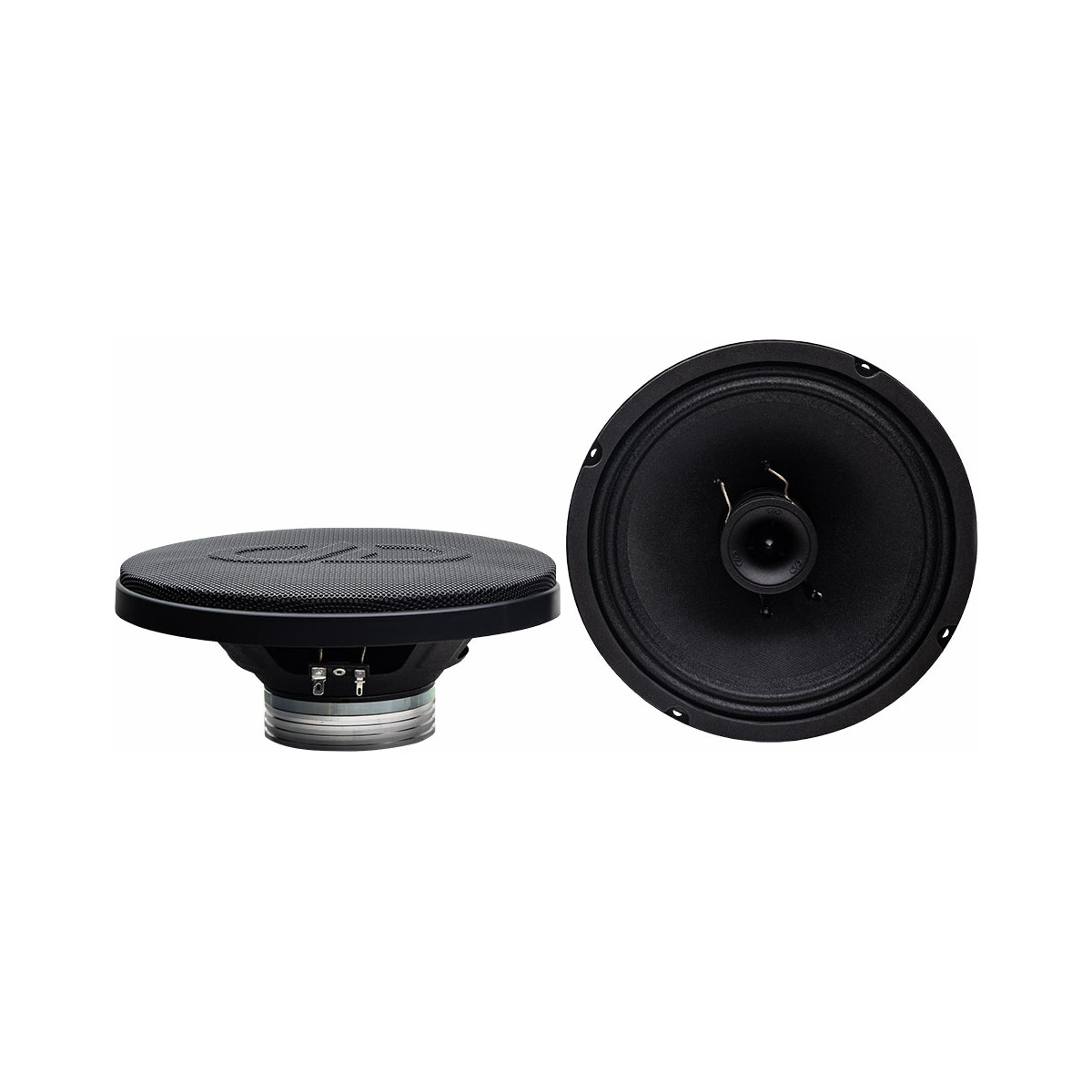

DD PA Style 8inch Voice Optimized Neo Coaxial - Pair - Designed & Engineered in the USA
Overview
The new Voice Optimized XN300 coaxial speakers feature an upgraded motor design and larger voice coil over the VO-XNa drivers, increasing both the power handling and output capability. The stronger motor of the speaker is complemented by the introduction of the 4th Gen B1 compression driver, made with a smaller all aluminum body while the voice coil was increased to 1.8”, for 25% greater total area. The VO-XN300s continue the tradition of blending the latest in Hi-Fidelity technology with the qualities of high-end Pro Audio to produce a tonally smooth, low distortion frequency response over a wide bandwidth through an undeniably powerful broadcast to give listeners near and far a gratifying interaction with loud and clear audio. These combination drivers can cover frequencies as low as 85Hz all the way up to 20kHz, making system designs easy.
They also include exclusive adventure ready design features, like sealed voice coil gaps and water resistant, synthetic resin cones made for unyielding rigidity and ultra-light moving mass, all to overcome the harsh conditions and environmental noise you’ll encounter on road and off.
Features
- Dual Magnet Neo Motor Design w/ Dual Shorting Rings
- Machined Aluminum Front and Rear Motor Removable Heatsinks
- Kapton Voice Coil Former for Decreased Inductance
- DD Tooled 4th Gen Neo Magnet Compression Tweeter
- Moisture Resistant Polymer Infused Curvilinear Cone
- Rubber Voice Coil Gap Cover
- CCA Voice Coil Wire for Increased Efficiency
- Removable Rear Heatsink for Increased Mountability
- Bi-Ampable
Specifications
- Speaker Size (In): 8
- Tweeter Size (In): 1
- Watts RMS: 250
- Watts Peak: 500
- Impedance: S2 / S4
- VCD (In): 1.8
- Frequency Response (Hz): 65 - 20k
- Fs (Hz): 65
- Qms: 2.115
- Qes: 0.45
- Qts: 0.371
- Vas (Liters): 27.21
- dBSPL: 96
- Tweeter dBSPL: 104
- Mounting Diameter (In): 7.25
- Mounting Diameter (MM): 185
- Mounting Depth (In): 3.25
- Mounting Depth (MM): 83
